Injector Dynamics

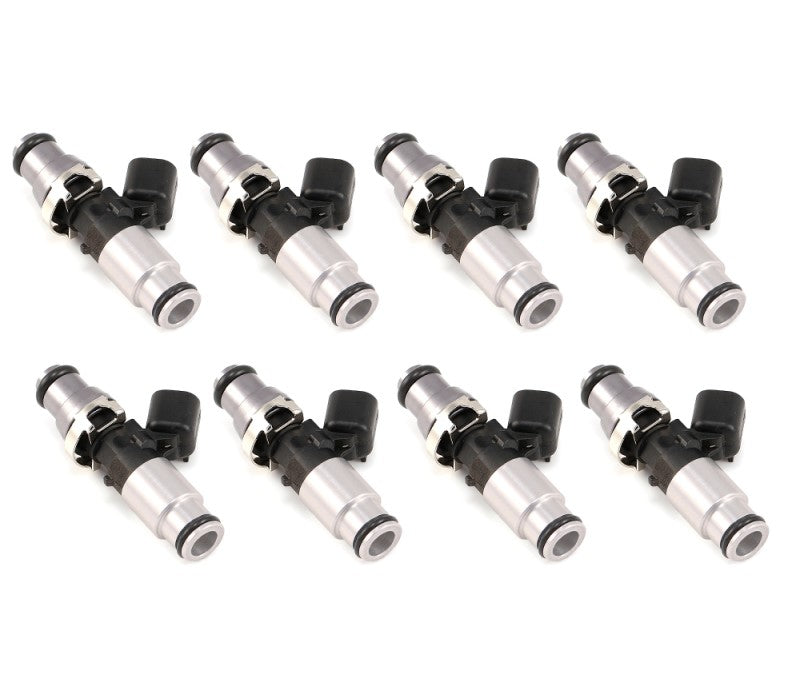

INJECTOR DYNAMICS ID1700X INJECTORS 14MM (GRAY TOP) (BLUE BOTTOM) ADAPTORS (SET OF 8)
- Regular price
- $2,478.00 USD
- Regular price
-
- Sale price
- $2,478.00 USD
- Unit price
- per
Couldn't load pickup availability
INJECTOR DYNAMICS 1700X INJECTORS - 60MM LENGTH - (GRAY TOP) (BLUE BOTTOM) ADAPTORS (SET OF 8)
Part: IDX1700.60.14.14B.8
Injector Dynamics - 1725cc Injectors 60mm Length 14mm Grey Adaptor Top - Blue Bottom Adapter (Set of 8)
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels. A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Basic Specifications
Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
Electrical Connector – USCAR
Fitment
- 2011 Ford F-150
- 2012 Ford F-150
- 2013 Ford F-150
- 2014 Ford F-150
- 2015 Ford F-150
- 2016 Ford F-150
- 2017 Ford F-150
- 2018 Ford F-150
- 2019 Ford F-150
- 2020 Ford F-150
- 2011 Ford Mustang
- 2012 Ford Mustang
- 2013 Ford Mustang
- 2014 Ford Mustang
- 2015 Ford Mustang
- 2016 Ford Mustang
- 2017 Ford Mustang
- 2018 Ford Mustang
- 2019 Ford Mustang
- 2020 Ford Mustang
- 2021 Ford Mustang
- 2022 Ford Mustang
- 2015 Ford Mustang Shelby GT350
- 2016 Ford Mustang Shelby GT350
- 2017 Ford Mustang Shelby GT350
- 2018 Ford Mustang Shelby GT350
- 2019 Ford Mustang Shelby GT350
- 2020 Ford Mustang Shelby GT350
- 2020 Ford Mustang Shelby GT500
- 2021 Ford Mustang Shelby GT500
- 2022 Ford Mustang Shelby GT500
