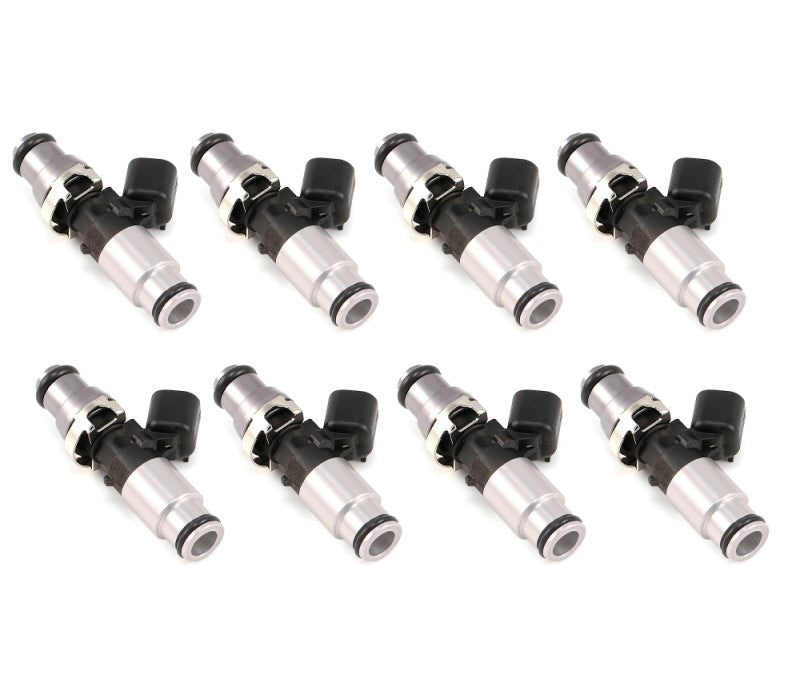

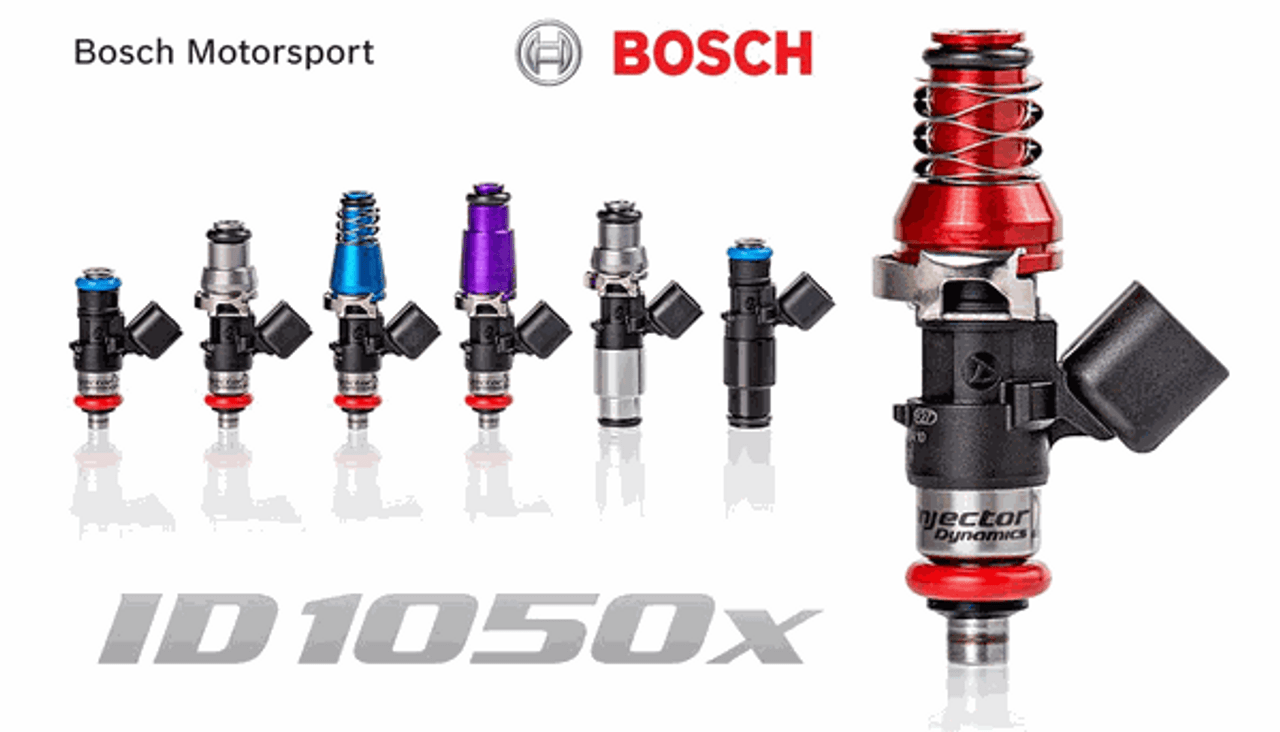

Injector Dynamics ID1050-XDS have replaced the older models ID1050 injectors and still are direct fit for the 5.0L Coyote Mustang and 5.2L Shelby GT350.  Rated at 1065cc per min the ID1050-XDS is the latest addition to the X Series, a line of injectors designed and built in partnership with Bosch Motorsport. The X Series injectors are not modified production parts, they are a true motorsport injector.



ID1050-XDS Features

• Set of 8 Injectors, 1065cc per min
• Good for about 900hp
• Excellent for any supercharger, N/A, Turbo or Nitrous applications
• Accurate data and flow rates allow for easier tuning and balanced performance
• The ID1050-XDS is compatible with all fuels including E85 and capable of extended service life with highly corrosive fuels.
• The ID1050-XDS shares the same compact body as the ID1300-XDS, and ID1700-XDS, allowing fitment in the greatest number of applications
• The ID1050-XDS has a replaceable inlet screen, unlike the standard captured non replaceable filter that does not always respond well to ultrasonic cleaning.
• The ID1050-XDS has an improved magnetic circuit (The same as the ID1300-XDS) which allows for stable operation at high pressure, extending the useful flow range of the injector.
• For extreme applications, the ID1050-XDS can be run as high as 10 bar (145 psi)
• The ID1050-XDS has an improved flow path, increasing flow approximately 5% over the ID1000, with no reduction in low flow capabilities.



Basic Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
